An ideal solution for high-volume label printing in manufacturing, warehouse, transportation and high-resolution labeling applications.
- High-volume label printing
- Reliable 24/7 mission-critical operations
- Durable die-cast aluminum frame.
- Large 240x320 graphical LCD display
- Versatile media compatibility
- Multiple interface options
- Multi-language menu

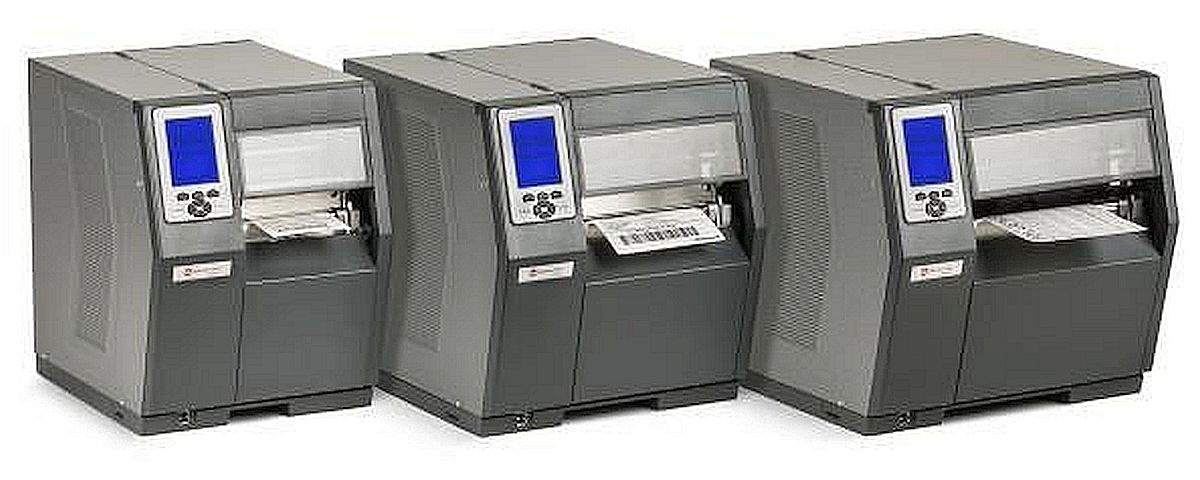

The H-Class is a rugged and versatile printer that is one of the industry’s most feature-rich solutions for dynamic enterprise applications, while operating as fast as many printers in its class. The H-Class is an ideal solution for high-volume label printing in manufacturing, warehouse, transportation and high-resolution labeling applications.
The H-Class reduces the total cost of ownership through its gear-driven, beltless design, providing rugged and reliable perfor mance for 24/7 mission-critical operations. Modular construction also increases uptime for the highest levels of user productivity. With one of the industry’s largest graphical displays, the H-Class provides an easy-to-read view for quick navigation and printer notifications. The H-Class offers a broad range of connectivity to meet diverse application requirements and easily integrates into any network. Support of UHF and HF RFID configurations for current or future requirements protects your printer investment. The high-quality features, performance and rugged reliability make the H-Class an excellent value among premium class printers on the market.
H-Class printers can be used in a wide variety of industrial applications with a range of media compatibility, connectivity, emulation support and options, including RFID support. The H-Class offers a complete range of 12 printer models, all but guaranteeing the best fit for your particular mission-critical label printing application.
Features and Benefits
-
H-Class printers come standard with ethernet, parallel, serial and USB. Other communication options are available.
-
Rugged construction features a gear-driven design and durable die- cast aluminum frame.
-
Multi-language menu available in English, Spanish, German, Italian and French.
-
Large 240x320 graphical LCD display for ease in navigating menus as well as data collection.
-
Versatile media compatibility supports coated-side-in or coated-side-out ribbons, resulting in easier ribbon- inventory management.
Specifications
Printer Type
Direct thermal, optional thermal transfer
Print Speed:
H-4212; 304 mms (12 ips), 8 mmps (203 dpi) H-4408; 203 mms (8 ips), 16 mmps (406 dpi) H-4310; 254 mms (10 ips), 12 mmps (300 dpi) H-4606; 152 mms (6 ips), 24 mmps (600 dpi) H-4212x; 304 mms (12 ips), 8 mmps (203 dpi) H-4310x; 254 mms (10 ips), 12 mmps (300 dpi) H-4606x; 152 mms (6 ips), 24 mmps (600 dpi)
Print Length Range:
6 mm (0.25 in) to 2,539.75 mm (99.99 in), (values vary with printer configuration)
Media Types
Roll-fed: 203.2 mm (8.0 in) max O.D. on a 76.2 mm (3.0 in) core; fan-fold stock: accepted from rear and bottom of printer; die-cut or continuous labels; perforated or continuous tag/ticket stock
Minimum Media Length
Tear-off and rewind modes: 6.4 mm (0.25 in) Peel and cutter modes: 25.4 mm (1.0 in)
Media Width Range
101.6 mm (4 in) models: 25.4 mm (1.0 in) to 118.1 mm (4.65 in); 152.4 mm (6 in) models: 50.8 mm (2 in) to 170.2 mm (6.7 in); 203.2 mm (8 in) models: 76.2 mm (3 in) to 228.9 mm (9.0 in)
Media Thickness Range
0.0635 mm (0.0025in) to 0.254 mm (0.01 in)
Ribbon Width Range
101.6 mm (4 in) models: 25.4 mm (1.0 in) to 114.3 mm (4.5 in); 152.4 mm (6 in) models: 50.8 mm (2.0 in) to 170.2 mm (6.7 in); 203.2 mm (8 in) models: 76.2 mm (3.0 in) to 228.9 mm (9.0 in)
Media Sensing
“See through” for liner-backed die-cut labels and tags, reflective sensor for black- mark label media
Label Backfeed
For use with optional cutter and peel & present
Ribbon Core
25.4 mm (1.0 in)
Ribbon Length
600 m (1968 in)
Communication Ports (Standard)
Serial RS232, parallel bi-directional, ethernet-wired LAN 10/100, USB 2.0 compatible
Communication Ports (Optional)
USB-Host, SDIO memory slot, wireless 802.11b/g, GPIO applicator card,
Communication Ports (Standard Tall Models) (Same as X-Series)
Serial RS232, parallel bi-directional, ethernet-wired LAN 10/100, USB 2.0 compatible; USB-Host, SDIO memory slot
Communication Ports (Optional Tall Models)(Same as X-Series)
wireless 802.11b/g, GPIO applicator card
Memory
16MB SDRAM/8MB Flash
Barcodes
Linear: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Postnet, UCC/EAN Code 128, Telepen, Planetcode, FIM, USPS-4 State;
Resident Fonts
Ten alphanumeric fonts from 2.5- to 23-point including OCR-A, OCR-B, CG Triumvirate™ smooth font from AGFA®; Scalable Fonts: CG Triumvirate Bold Condensed, CG Triumvirate & CG Times with Cyrillic, Greek Arabic and Hebrew character support
Character Sets
More than 50 resident character sets; Unicode/UTF8 support
Downloadable Font Types
True-Type, Bitmap
Font Expansion/Rotation
All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
Graphics Supported
.pcx, .bmp, .img and ASCII format files
Reversible Field/Mirror Image
Any font orgraphic field can be printed as a normal or reverse image
