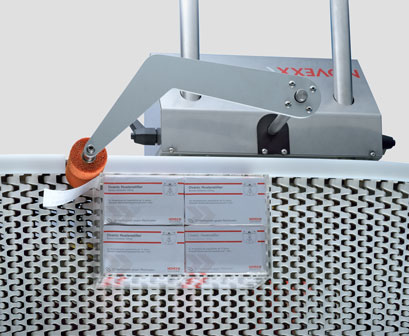

LA-CE-WO wipe round rear corner
One label on 2 sides · Round rear corner · Pneumatic
The LA-CE-WO folds labels up to 130 mm wide and 110mm–200mm long round a rear corner edge.
The LA-CE-WO is corner edge applicator with wipe on to label round two rear sides of a box. 18 boxes per minute.
- Pneumatic applicator folds labels around the back corner of rectangular shaped products
- The LA-CE Wipe is mounted directly on the conveyor
- Arm is spring driven around the corner
Configuration
- Corner edge back
- Mounted onto conveyor belt
- Moving products
SPECIFICATIONS | |
---|---|
Label width | up to 150 mm |
Label length | 110–200 mm |
Capacity* | up to 18 labels/min |
Compatibility | All ALS and ALX with direct application of labels |
